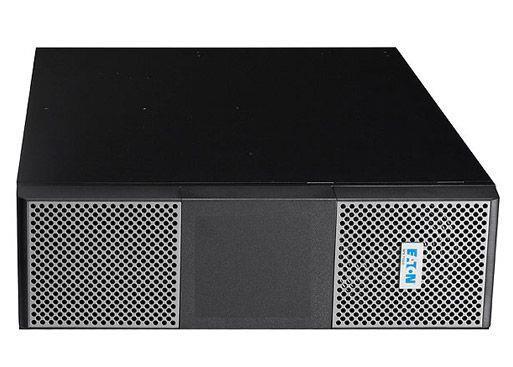

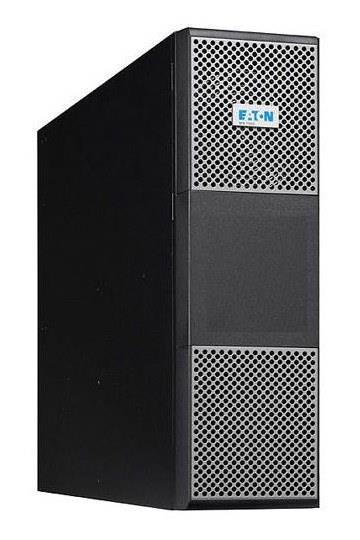

Eaton 9PX 8/11kVA 240V Rack Tower Extended Battery 9PXEBM240
SKU: 9PXEBM240
Sold Out
Notify me when back in stock
People who viewed this, also viewed
APC Smart UPS X 1980W 2200VA 230V Rack
$3,230.00
Eaton 9PX 11000VA 10000W Rack Tower UPS 9PXEBM240: The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Features
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Rack/Tower |
| Part Number | 9PX11KiPM + 9PXEBM240 |
| Rating (VA/Watts) | 11000/10000 |
| Dimensions (H x W x D, mm) | 260 (6U) x 440 x 685 |
| Weight (kg) | 86 |
| Warranty | 3 years on electronics, 2 years on battery |
| Electrical Input | |
| Connection |
Hardwired - see manual for terminal block layout
|
| Input Voltage Range | 176-276V without derating (up to 100–276V with derating) |
| Nominal Voltage | 200/208/220/230/240/250V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Short Circuit Current | 150 A |
| THDI | <5% |
| Electrical Output | |
| Voltages | 200/208/220/230/240/250V +/– 1% |
| Voltage THD | < 2% |
| Output Receptacles |
Hardwired - see manual for terminal block layout
|
| Overload Capacity | 102–110% : 120s, 110–125%: 60s, 125–150%: 10s, >150%: 900ms |
| Efficiency (Normal Mode) | Up to 95% in Online mode, 98% in Hi-Efficiency mode |
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
| Load Crest Factor | 3:1 |
| Battery | |
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM (3U) |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. |
| Communications Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <50dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick |
| Approvals | CE, CB report (TUV), UL (Power Module) |
| SKU | 9PXEBM240 |
| Model # | 9PXEBM240 |
| Barcode # | 00743172039422 |
| Brand | Eaton |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.280m |
| Shipping Length | 0.700m |
| Unit Of Measure | ea |
| Type | store |
