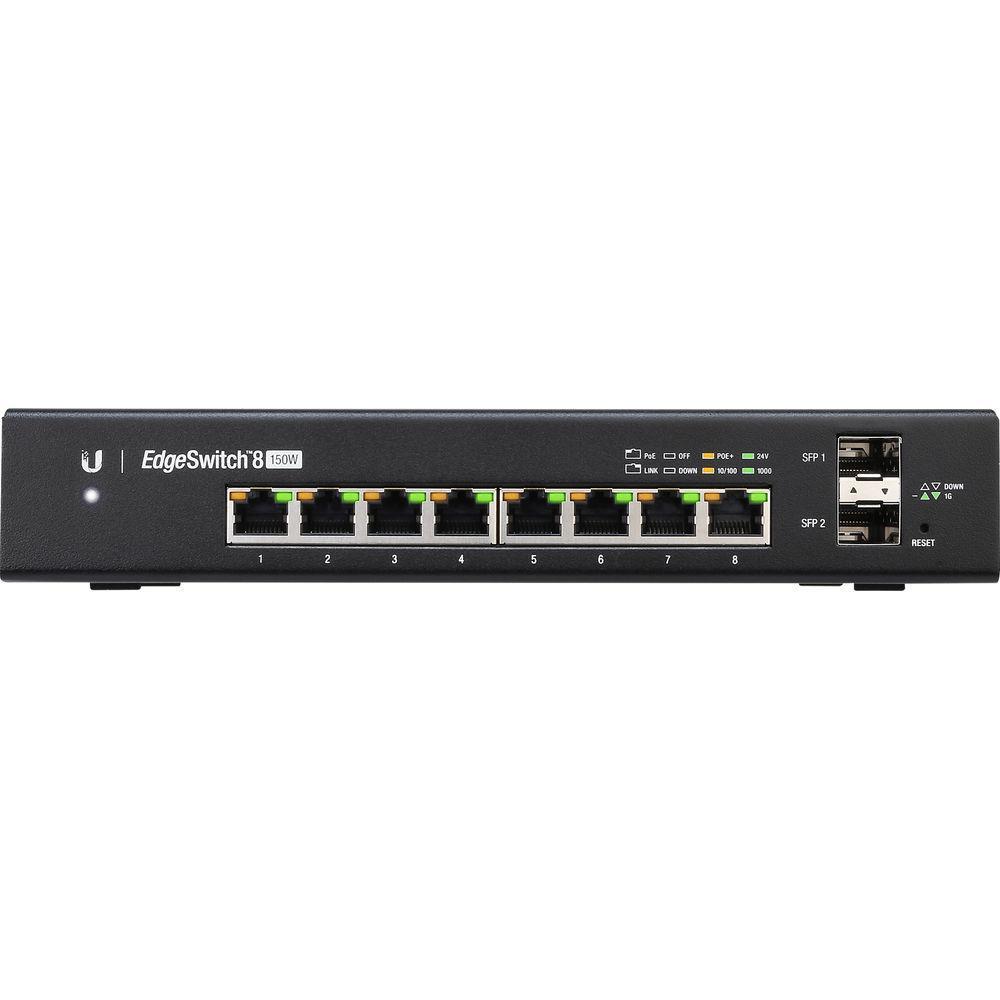

Ubiquiti EdgeSwitch Managed PoE+ 8 Port Gigabit Switch
150W | with SFP
SKU: ES-8-150W
RRP $399.00
Sold Out
Notify me when back in stock
People who viewed this, also viewed
Ubiquiti EdgeSwitch 8 Port PoE+ Gigabit Switch The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Features
| Total Non-Blocking Throughput | 10 Gbps |
| Max Power Consumption | 150 W |
| Power Method | 100-240 VAC / 50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150 W DC AC/DC, Internal, 150 W DC |
| LEDs | RJ45 Data Ports |
| PoE, Speed/Link/Activity | |
| SFP Data Ports | |
| Speed/Link/Activity | |
| LAN Ports | 8 x 10/100/1000 Mbps RJ45 Ethernet Ports |
| 2 x 1 Gbps SFP Ethernet Ports | |
| Management Interface | Ethernet in/out band |
| Certifications | CE, FCC, IC |
| Rackmount | Yes, 1U high |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Operating Temperature | Internal AC/DC @ 150 W |
| -13 to 113°F (-25 to 45°C) | |
| Internal AC/DC @ 100 W | |
| -13 to 131°F (-25 to 55°C) | |
| External DC | |
| -13 to 140°F (-25 to 60°C) | |
| Operating Humidity | 5 to 95% non-condensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| PoE | PoE Interfaces |
| POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) | |
| 24 VDC Passive PoE (Pins 4, 5+; 7, 8-) | |
| Max. PoE+ Wattage per Port by PSE | |
| 34.2 W | |
| Voltage Range 802.3at Mode | |
| 50-57 V | |
| Max. Passive PoE Wattage per Port | |
| 17 W | |
| 24 V Passive PoE Voltage Range | |
| 20-27 V | |
| Dimensions | 8.03 x 1.69 x 9.25" (204 x 43 x 235 mm) |
| Weight | With Mount Brackets: 3.79 lb (1.72 kg) |
| Without Mount Brackets: 3.96 lb (1.80 kg) |
| SKU | ES-8-150W |
| Model # | ES-8-150W |
| Barcode # | 00817882023214 |
| Brand | Ubiquiti |
| Shipping Weight | 0.8000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.040m |
| Shipping Length | 0.180m |
| Unit Of Measure | ea |
| Type | store |
1 Years Limited Manufacturer Warranty
