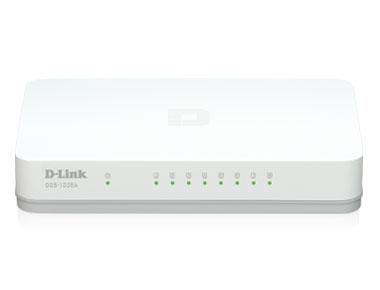

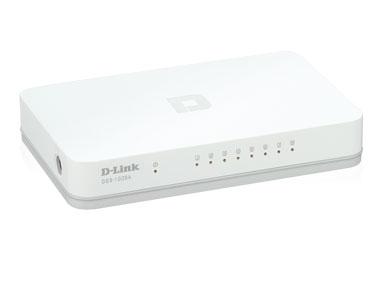

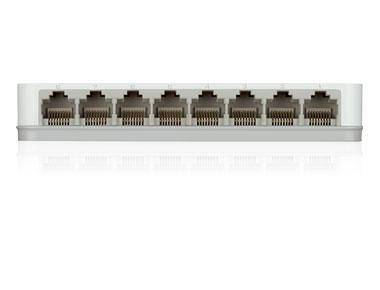

Open Box Sale -- DLINK 8-Port Gigabit Desktop Switch DGS-1008A
SKU: DGS-1008A
RRP $39.95
Sold Out
Notify me when back in stock
People who viewed this, also viewed
DLINK 8-Port Gigabit Desktop Switch DGS-1008A: The first of the Green Ethernet products the DGS-1008D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology
Features
Think Green
The D-Link 8-port Gigabit Switch is part of D-Links new series of SOHO devices that make use of D-Links Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Conserves Energy
The DGS-1008A 8-port Gigabit Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
Environmentally Friendly
The 8-port Gigabit Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
| Standards |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
|
|
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
|
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
|
|
|
Auto-negotiation of ANSI / IEEE 802.3 NWay
|
|
|
802.3x Flow Control
|
|
| Protocol | CSMA / CD |
| Data transfer rate - Ethernet |
- 10 Mbit / s (half duplex)
|
|
- 20 Mbit / s (full duplex)
|
|
| Data transfer rate - Fast Ethernet |
- 100 Mb / s (half duplex)
|
|
- 200 Mbit / s (full duplex)
|
|
| Data transfer rate - Gigabit Ethernet | - 2000 Mbit / s (full duplex) |
| Topology | Star |
| Network Cables - 10Base-T |
- UTP Cat. 3, 4, 5/5e (100m max.)
|
|
- EIA/TIA-586 100-ohm STP (100 meters max.)
|
|
| Network Cables - 100BASE-TX, 1000BASE-T |
- UTP Cat. 5/5e (100m max.)
|
|
- EIA/TIA-568 100-ohm STP (100 meters max.)
|
|
| Media Interface Exchange | Automatic detection of MDI / MDIX on all ports |
| Indicators - The port | Link / Activity / Speed |
| Indicators - On the device | Power |
| Switching Method | Store-and-forward |
| MAC-address table | 8K entries per device |
| Study of MAC-addresses | Automatic update |
| Filtration rate / packet - Ethernet | 14,880 packets per second. to port |
| Filtration rate / packet - Fast Ethernet | 148,800 packets per second. to port |
| Filtration rate / packet - Gigabit Ethernet | 1488000 packets per second. to port |
| Buffer RAM | 128K on device |
| Input Power | Power Adapter Level "V" 5 V / 1 A |
| Power consumption | Input Power: 3.9 W AC, 3.06 Tues DC |
| MTBF | 412,933 hours |
| Operating temperature | 0 to 40 C |
| Storage temperature | -10 To 70 C |
| Operating Humidity | From 10% to 90% non-condensing |
| Humidity | From 5% to 90% non-condensing |
| Dimensions | 128 x 68.5 x 25.4 mm |
| Certificates |
CE Class B
|
|
FCC Class B
|
|
|
ICES-003 Class B
|
|
|
VCCI Class B
|
|
|
C-Tick
|
|
|
Anatel
|
|
|
CCC
|
|
|
LVD
|
|
|
cUL / UL
|
| SKU | OB-DGS-1008A |
| Model # | DGS-1008A |
| Brand | D-Link |
| Shipping Weight | 0.8000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.070m |
| Shipping Length | 0.130m |
| Unit Of Measure | ea |
1 Year Manufacture Warranty
