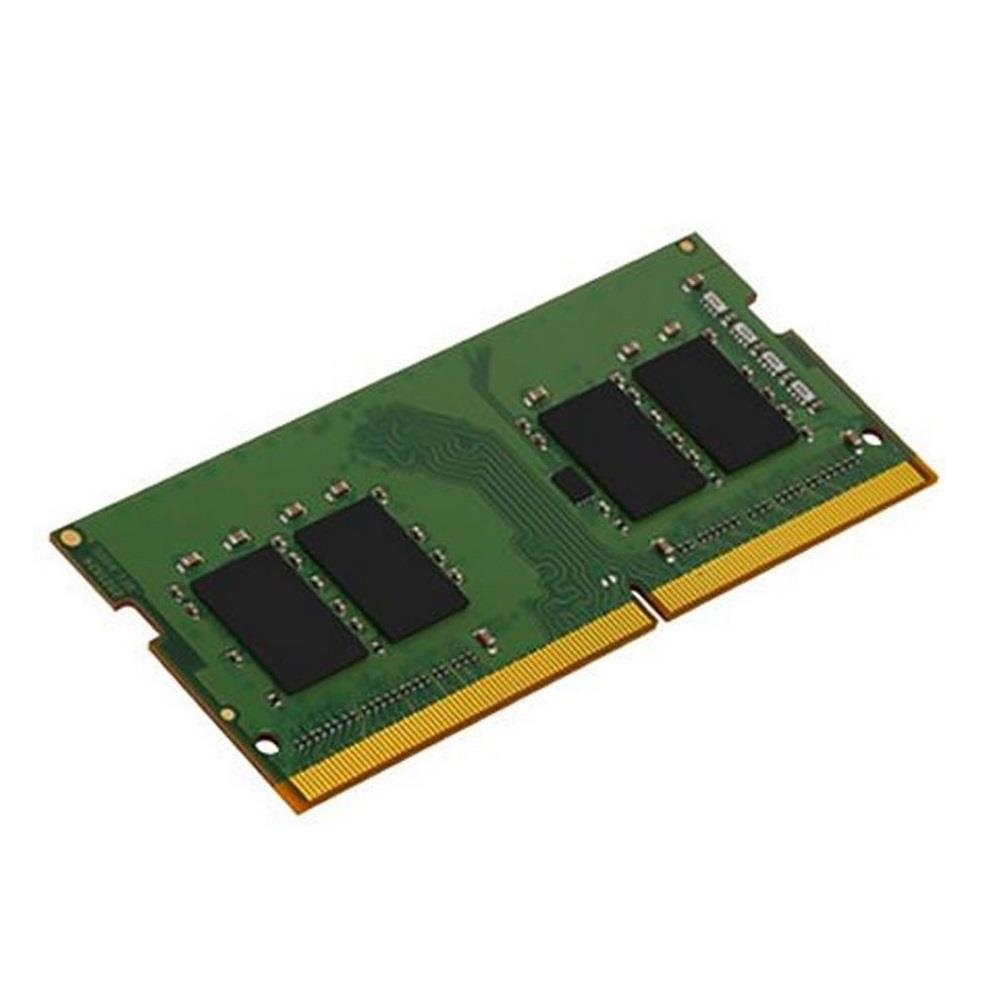

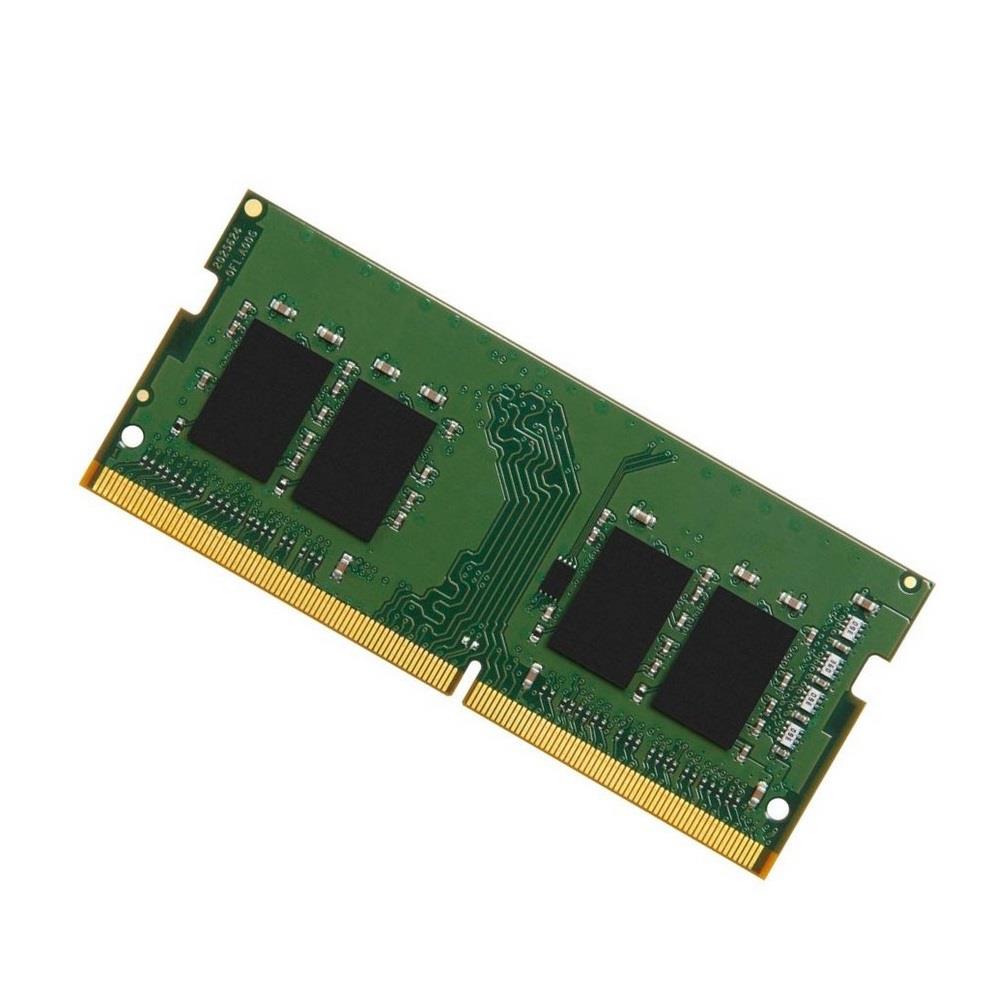

Kingston ValueRAM 16GB 3200MHz CL22 DDR4 Laptop RAM Memory

SKU: KVR32S22S8/16

Sold Out
Out of Stock, Add to Wishlist
0
(0 Reviews)

Calculate Shipping


RAM Clock Speed:3200MHz

CL Timing:22-22-22-22

Voltage:1.2V

Memory Type:DDR4

Capacity:16GB


ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
 data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

SKU KVR32S22S816
Model # KVR32S22S8/16
Barcode # 0740617310894
Brand Kingston
Shipping Weight 1.0000kg
Shipping Width 0.030m
Shipping Height 0.010m
Shipping Length 0.070m
Unit Of Measure ea
Type store
Limited Lifetime Manufacturer Warranty
