Gigabyte Brix J1900 PC Kit +4GB +1TB

Barebone Kit

SKU: GB-BXBT-1900

RRP $512.00
Sold Out
Maximum Order Quantity: 1
Dispatch from warehouse in 24 hours
0
(0 Reviews)

Calculate Shipping


Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.

 This is only Barebone Kit + Kingston 4GB Ram + Seagate 1TB 2.5" SATA SSHD (not installed)

Features 22nm Intel® Celeron J1900 to deliver to the most intuitive and integrated operating systems in the world

  • Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 3Gbps)
  • Ultra compact PC design – 0.69L(56.1x 107.6 x 114.4mm)
  • 1x SO-DIMM DDR3L 1.35V Slots (1333 MHz)
  • Preinstall IEEE 802.11 b/g/n Wi-Fi / Bluetooth 4.0 Mini-PCIe card
  • Supports dual displays via a VGA and a HDMI port
  • Gigabit LAN
  • Audio jack (Headphone/MIC)
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)

Features

Redefining the Desktop PC

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.



Intel® Celeron J1900

Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The SoCs feature significant improvements in computational power, energy efficiency, enhanced graphical and media performance making the BRIX ideal for thin clients, retail transactional clients, and digital signage.

Advanced Features For Power Users

The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.



Dimension 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")
Motherboard 100 x 105 mm
CPU Intel® Celeron® Processor J1900 up to 2.42GHz
Memory 1x SO-DIMM DDR3L 1.35V slot
1333MHz
Max. 8GB
LAN Gigabit LAN (Realtek RTL8111G)
Audio Realtek ALC283
Video Intel® HD Graphics
VGA Resolution (Max.) 2560 x 1600 @ 60Hz
HDMI Resolution (Max.) 1920 x 1200 @ 60Hz (HDMI 1.4a)
Expansion Slots 1 x Half-size mini-PCIe slot occupied by the WiFi+BT card
Front I/O 1 x USB 3.0
Rear I/O 1 x HDMI
2 x USB 2.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

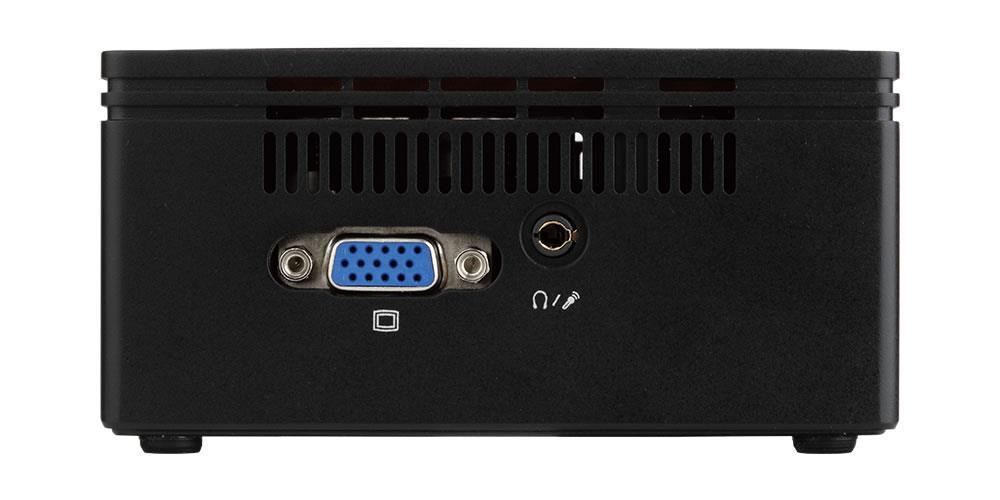

Side I/O 1 x VGA D-Sub
1 x Audio-out / Mic-In
Storage Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 3Gbps SATA2)
Power Supply Input: AC 100-240V
Output: DC 12V
2.5A
VESA Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS WIN7 64bit
WIN8 32/64bit
WIN8.1 32/64bit
Environment System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
SKU GB-BXBT-1900-4GB-1TB
Model # GB-BXBT-1900
Brand Gigabyte
Shipping Weight 0.8000kg
Shipping Width 0.110m
Shipping Height 0.060m
Shipping Length 0.110m
Shipping Cubic 0.000726000m3
Unit Of Measure ea
Type store
1 Year Manufacture Warranty
