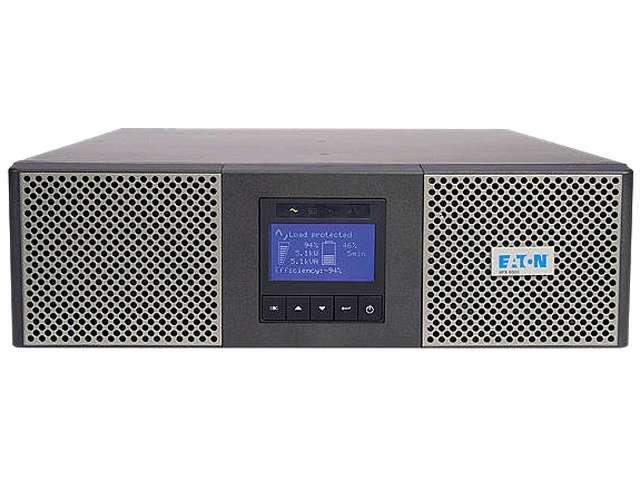

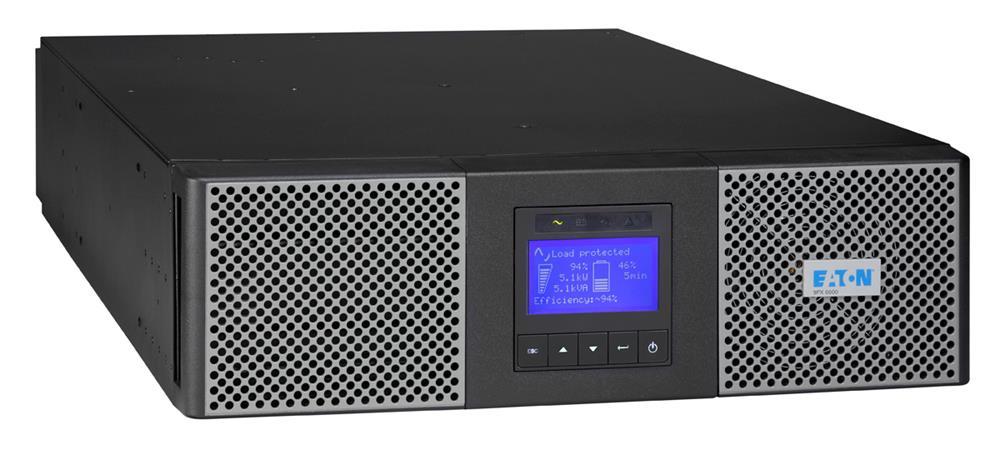

Eaton Powerware 9PX 6000VA 5400W Online Rack UPS 9PX6Ki

SKU: 9PX6Ki

Sold Out
Out Of Stock
Maximum Order Quantity: 2
Out of Stock, Add to Wishlist
0
(0 Reviews)
Notify Me

Calculate Shipping

People who viewed this, also viewed

Eaton Powerware 9PX 6000VA 5400W Online Rack UPS 9PX6Ki: The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.



Features

General
Topology On-line double conversion with PFC (Power Factor Correction) system

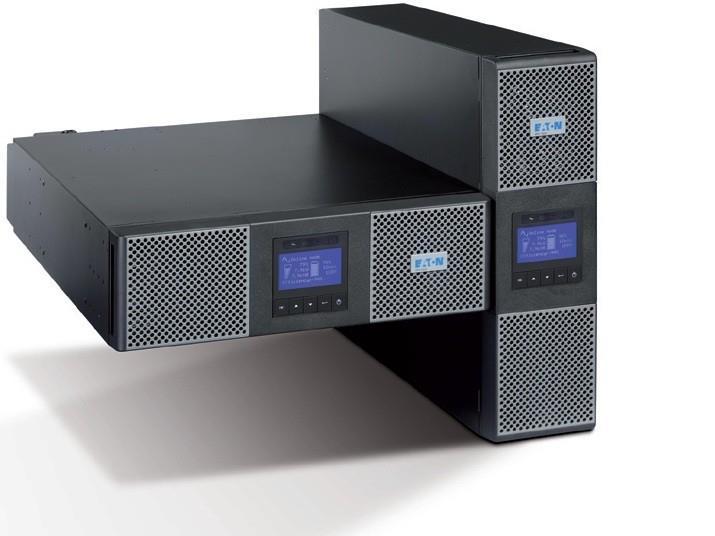

Configuration Rack/Tower
Part Number 9PX6Ki
Rating (VA/Watts) 6000/5400
Dimensions (H x W x D, mm) 130 (3U) x 440 x 685
Weight (kg) 48
Warranty 3 years on electronics, 2 years on battery

Electrical Input
Connection
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Input Voltage Range 176-276V without derating (up to 100–276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Short Circuit Current 90 A
THDI <5%

Electrical Output
Voltages 200/208/220/230/240V +/– 1%
Voltage THD < 2%
Output Receptacles
(8) IEC-320-C13
C13
(2) IEC-320-C19
C19
Hardwired - see manual for terminal block layout
Hardwired - example layout only
Overload Capacity 102–110% : 120s, 110–125%: 60s, 125–150%: 10s, >150%: 500ms
Efficiency (Normal Mode) Up to 94% in Online mode, 98% in Hi-Efficiency mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Load Crest Factor 3:1

Battery
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM (3U)

Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation.
Communications Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards

Environmental & Standards
Audible Noise <45dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick
Approvals CE, CB report (TUV), UL

Configuration Rack/Tower

Part Number 9PX6Ki

Rating (VA/Watts) 6000/5400

Dimensions (H x W x D, mm) 130 (3U) x 440 x 685

Weight (kg) 48

Warranty 3 years on electronics, 2 years on battery

Connection

Hardwired - see manual for terminal block layout

Input Voltage Range 176-276V without derating (up to 100-276V with derating)

Nominal Voltage 200/208/220/230/240V

Frequency 50/60 Hz autoselection

Frequency Range 40-70 Hz

Short Circuit Current 90 A

THDI <5%

Voltages 200/208/220/230/240V +/ 1%

Voltage THD < 2%

Output Receptacles

(8) IEC-320-C13

Topology On-line double conversion with PFC (Power Factor Correction) system

(2) IEC-320-C19

Hardwired - see manual for terminal block layout

Efficiency (Normal Mode) Up to 94% in Online mode, 98% in Hi-Efficiency model

Output Frequency 50/60 Hz autoselect, frequency converter as standard

Load Crest Factor 3:1

SKU 9PX6Ki
Model # 9PX6Ki
Brand Eaton
Shipping Weight 48.0000kg
Shipping Width 0.440m
Shipping Height 0.130m
Shipping Length 0.700m
Unit Of Measure ea
Type store
3 Year Manufacture Warranty
