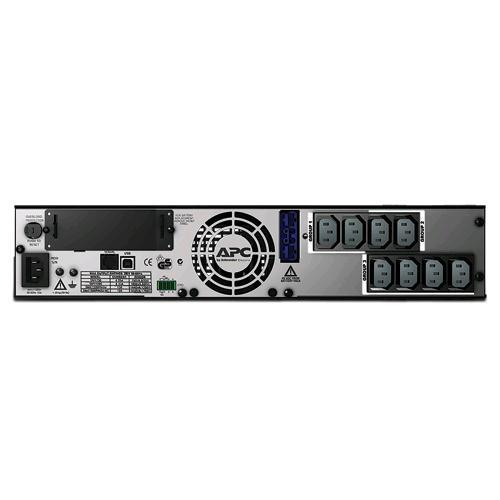

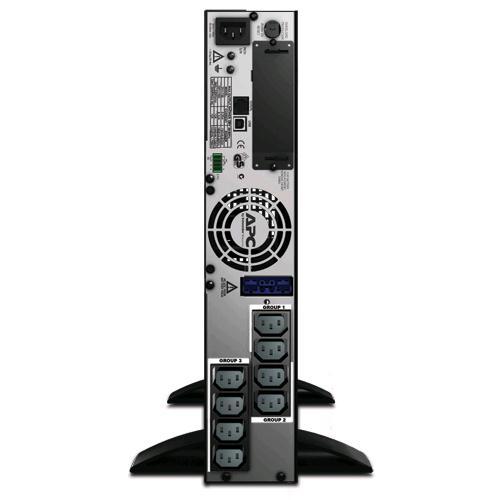

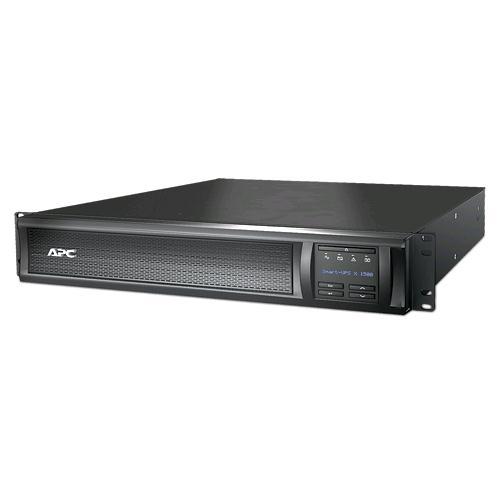

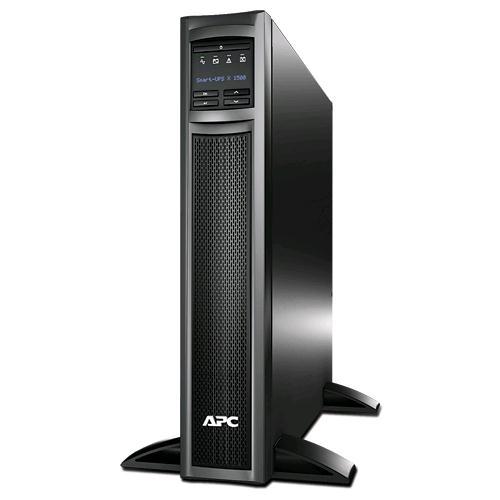

APC Smart UPS X 1200W 1500VA 230V Rack Tower UPS

SKU: SMX1500RMI2U

Sold Out
Out Of Stock
Out of Stock, Add to Wishlist
0
(0 Reviews)
Notify Me

Calculate Shipping

People who viewed this, also viewed

APC SMART-UPS X 1500VA RACK TOWER 230V SMX1500RMI2U: APC Smart-UPS,1200 Watts /1500 VA,Input 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U

Features

SMX1500RMI2U Features

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Output

  • Output power capacity
    1.2 KWatts / 1.5 kVA
  • Max Configurable Power (Watts)
    1.2 KWatts / 1.5 kVA
  • Nominal Output Voltage
    230V
  • Output Voltage Distortion
    Less than 5%
  • Output Frequency (sync to mains)
    50/60Hz +/- 3 Hz
  • Topology
    Line Interactive
  • Waveform type
    Sine wave
  • Output Connections
    (2) IEC Jumpers (Battery Backup)
    (8) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14
  • Cord Length
    1.83meters
  • Input voltage range for main operations
    160 - 286V
  • Input voltage adjustable range for mains operation
    151 - 302V
  • Number of Power Cords
    1

Batteries & Runtime

Communications & Management

  • Interface Port(s)
    SmartSlot , USB
  • Control panel
    Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO)
    Yes
  • Available SmartSlot™ Interface Quantity
    1

Surge Protection and Filtering

  • Surge energy rating
    645Joules
  • Filtering
    Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height
    89mm , 8.9cm
  • Maximum Width
    432mm , 43.2cm
  • Maximum Depth
    490mm , 49.0cm
  • Rack Height
    2U
  • Net Weight
    24.82kg
  • Shipping weight
    30.0kg
  • Shipping Height
    246mm , 24.6cm
  • Shipping Width
    589mm , 58.9cm
  • Shipping Depth
    620mm , 62.0cm
  • Color
    Black
  • Units per Pallet
    8.0

Environmental

  • Operating Environment
    0 - 45 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 45 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-15000meters
  • Audible noise at 1 meter from surface of unit
    40.0dBA
  • Online thermal dissipation
    133.0BTU/hr

Conformance

  • Approvals
    CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
  • Standard warranty
    3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

  • RoHS
    Compliant
  • REACH
    REACH: Contains No SVHCs
  • PEP
    Available in Documentation tab
  • EOLI
    Available in Documentation tab
SKU SMX1500RMI2U
Model # SMX1500RMI2U
Barcode # 00073130426859
Brand APC
Shipping Weight 28.0000kg
Shipping Width 0.600m
Shipping Height 0.250m
Shipping Length 0.620m
Shipping Cubic 0.093000000m3
Unit Of Measure ea
Type store
1 Year Manufacture Warranty
