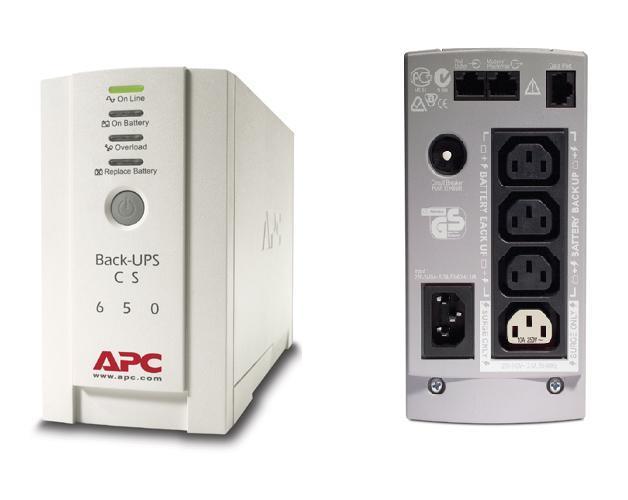

APC Back-UPS CS 650VA 230V BK650-AS
Battery may be unplugged from main unit upon arrival for safer delivery
SKU: BK650-AS
Sold Out
Notify me when back in stock
People who viewed this, also viewed
APC Smart UPS X 1980W 2200VA 230V Rack
$3,230.00
APC Back-UPS CS 650VA 230V BK650-AS: APC Back-UPS,400 Watts /650 VA,Input 230V /Output 230V, Interface Port USB
Features
Output
Output Power Capacity
400 Watts / 650 VA
Max Configurable Power
400 Watts / 650 VA
Nominal Output Voltage
230V
Topology
Standby

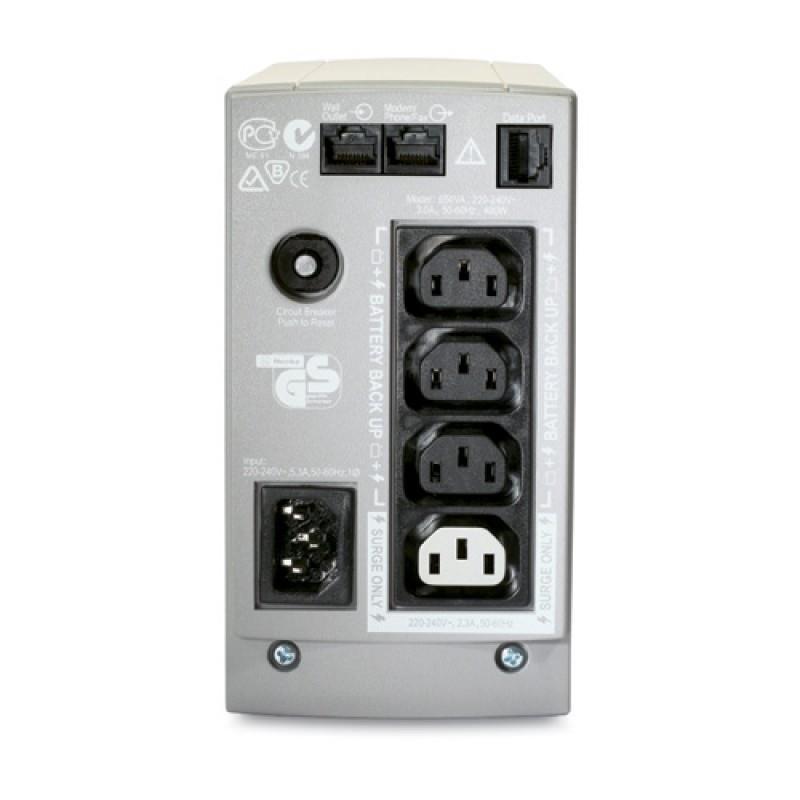

Output Connections
| (1) IEC 320 C13 (Surge Protection) |
|
| (3) IEC 320 C13 (Battery Backup) |
|
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| IEC-320 C14 |
Cord Length
1.83 meters
Input voltage range for main operations
180 - 260V
Input voltage adjustable range for mains operation
160 - 282V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8 hour(s)
Replacement Battery
RBC™ Quantity
1
Runtime Graph
Energy Use/Efficiency
| Load | Efficiency |
| 25% | 95.8% |
| 50% | 97.4% |
| 75% | 97.8% |
| 100% | 97.8% |
Communications & Management
Interface Port(s)
USB
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
320 Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
Physical
Maximum Height
165.00 mm
Maximum Width
91.00 mm
Maximum Depth
284.00 mm
Net Weight
6.04 KG
Shipping Weight
7.32 KG
Shipping Height
494.00 mm
Shipping Width
185.00 mm
Shipping Depth
415.00 mm
Master Carton Units
1.00
Master Carton Weight
16.09 lbs.
Color
Beige
SCC Codes
1073130422443 0
Units per Pallet
48.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-9000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
5 - 95%
Storage Elevation
0-4500 meters
Audible noise at 1 meter from surface of unit
45.00 dBA
| SKU | BK650-AS |
| Model # | BK650-AS |
| Barcode # | 00731304224433 |
| Brand | APC |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.500m |
| Unit Of Measure | ea |
| Type | store |
1 Year Manufacture Warranty
