Intel Celeron G3930 CPU 7th Gen LGA 1151 2.90GHz

Socket LGA 1151 | 7th Gen Celeron

SKU: BX80677G3930

$53.00
RRP $99.00
In Stock
Maximum Order Quantity: 1
'Dispatch from warehouse in 24 hours'
0
(0 Reviews)

Calculate Shipping


Intel Celeron G3930 CPU 7th Gen LGA 1151 2.90GHz it's Socket LGA 1151 Intel 200/1001 Series Chipset Compatibility (1. Excludes Intel Octane Technology support) Intel HD Graphics 610.

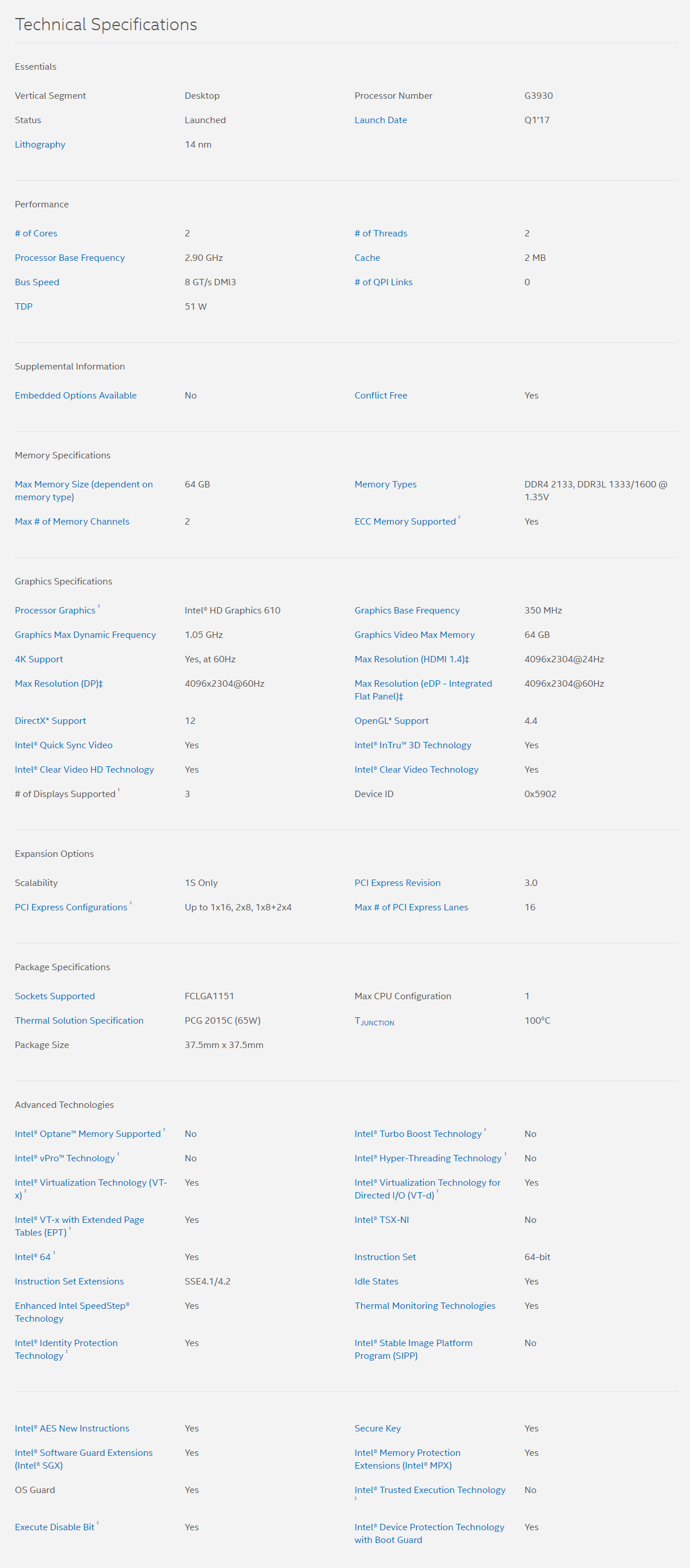

Features

Intel® Celeron® Processor G3930 (2M Cache, 2.90 GHz)
Code Name  Kaby Lake
Essentials
Vertical Segment Desktop
Processor Number G3930
Status Launched
Launch Date Q1'17
Lithography 14 nm
Performance
# of Cores 2
# of Threads 2
Processor Base Frequency 2.90 GHz
Cache 2 MB
Bus Speed 8 GT/s DMI3
# of QPI Links 0
TDP 51 W
Supplemental Information
Embedded Options Available No
Conflict Free Yes
Datasheet Link
Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4 2133, DDR3L 1333/1600 @ 1.35V
Max # of Memory Channels 2
ECC Memory Supported   Yes
Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics 610
Graphics Base Frequency 350.00 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.4
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x5902
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C (65W)
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Optane™ Memory Supported ‡ No
Intel® vPro Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI No
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) No
Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology ‡ No
Execute Disable Bit ‡ Yes
Intel® Device Protection Technology with Boot Guard Yes
SKU BX80677G3930
Model # BX80677G3930
Brand Intel
Shipping Weight 0.4500kg
Shipping Width 0.140m
Shipping Height 0.100m
Shipping Length 0.140m
Unit Of Measure ea
Type store

3 Year Manufacturer Warranty
