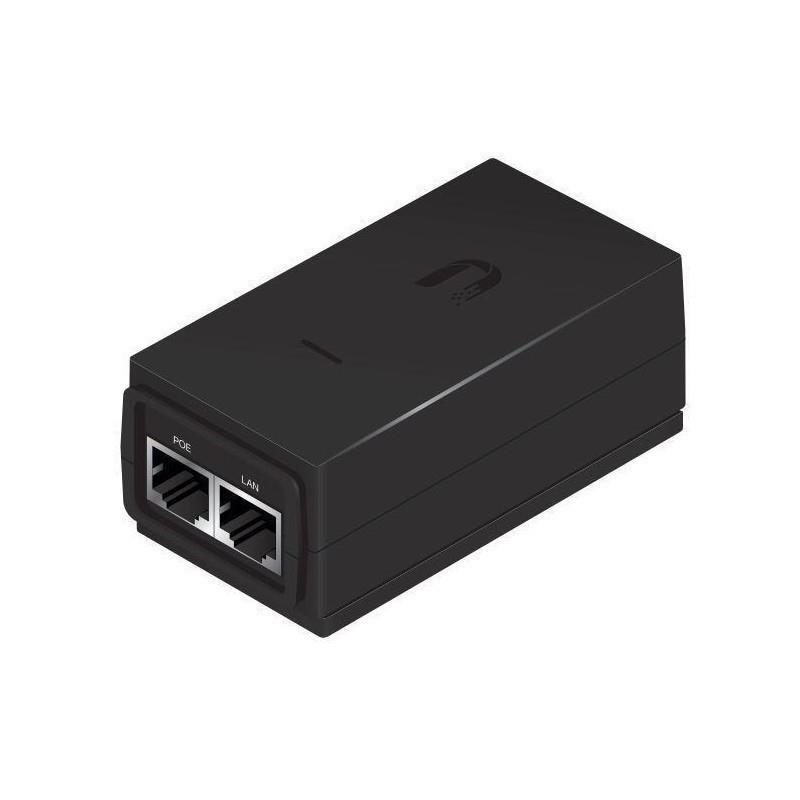

Ubiquiti POE-24-12W-G Power Over Ethernet Adapter

24VDC | Gigabit LAN Port | 12W | Wall Mountable

SKU: POE-24-12W-G

RRP $35.00
In Stock
Dispatch from warehouse in 3-5 working days
0
(0 Reviews)

Calculate Shipping

People who viewed this, also viewed

The Ubiquiti POE-24-12W-G Power Over Ethernet Adapter is highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Features

Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4g (3.51g)
Output Voltage 24VDC @ 0.5A
LAN Acitivity indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
input Voltage 90-260VAC @ 47-63VAC
Input Current 0.3A @ 120VAC,
0.2A @ 240VAC
Inrush Current < 30A Peak @ 120VAC,
< 60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max
Switching Frequency 50 kHz
Line regulation ± 1%
Load Regulation ± 3%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating himidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN /POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance < 5 pF data
Response Time < 1 ns
Compliance IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico

SKU POE-24-12W-G
Model # POE-24-12W-G
Barcode # 810354021190
Brand Ubiquiti
Shipping Weight 0.5000kg
Shipping Width 0.140m
Shipping Height 0.080m
Shipping Length 0.100m
Unit Of Measure ea
Type store
1 Year Limited Manufacturer Warranty
