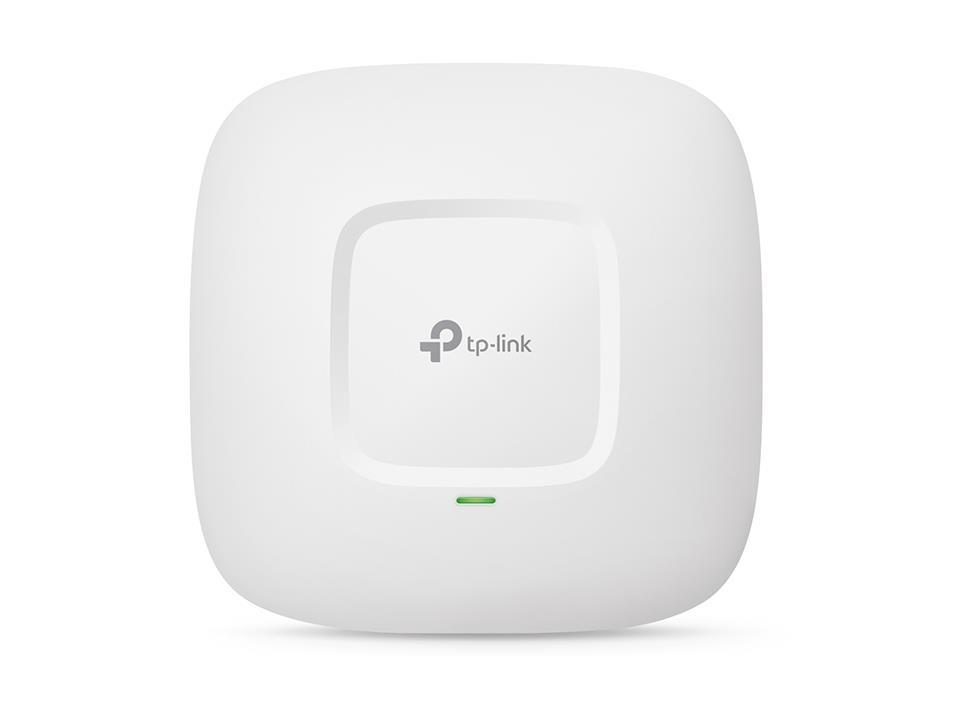

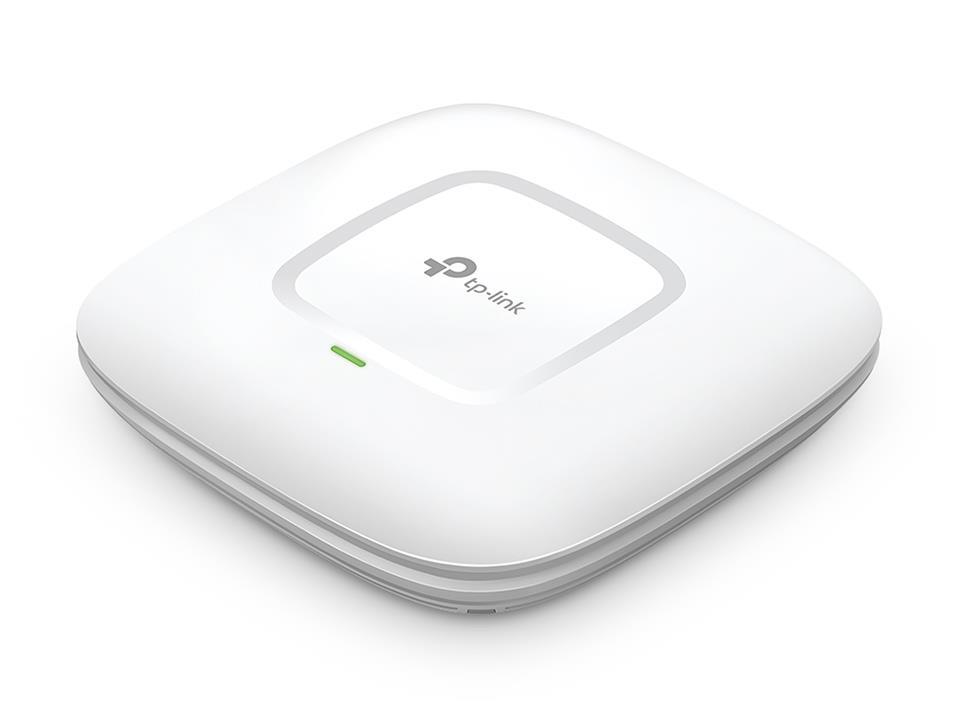

TP-Link EAP245 Wireless Ceiling Mount Access Point

Dual Band | 1750Mbps Wi-Fi speeds

SKU: EAP245

RRP $189.00
In Stock
Dispatch from warehouse in 24 hours
0
(0 Reviews)

Calculate Shipping


TP-Link AC1750 Wireless Dual Band Access Point Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds Free EAP Controller Software lets administrators easily manage hundreds of EAPs Support Power over Ethernet(802.3at) for convenient and affordable installation Captive portal provides a convenient method for guest authentication Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections Load balance ensures large numbers of users have smooth network experiences in high density business networks

  • 1750Mbps wireless data rate for uninterrupted wireless connection
  • Free Controller Software for easy centralized management of hundreds of EAPs
  • Power over Ethernet(802.3at) Support for convenient and affordable installation
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Simple mounting design makes easy to install on any wall or ceiling surface
  • Rate limit on per SSID to restrict the bandwidth of each client
  • Load balance ensures large numbers of users have smooth network experiences in high density business networks
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • Access Control restricts or only allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to reboot automatically at a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Compatible with 802.11 a/b/g/n/ac products
  • Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
  • Multiple operating modes including managed AP and standalone AP satisfy different application conditions
  • Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

Features

HARDWARE FEATURES

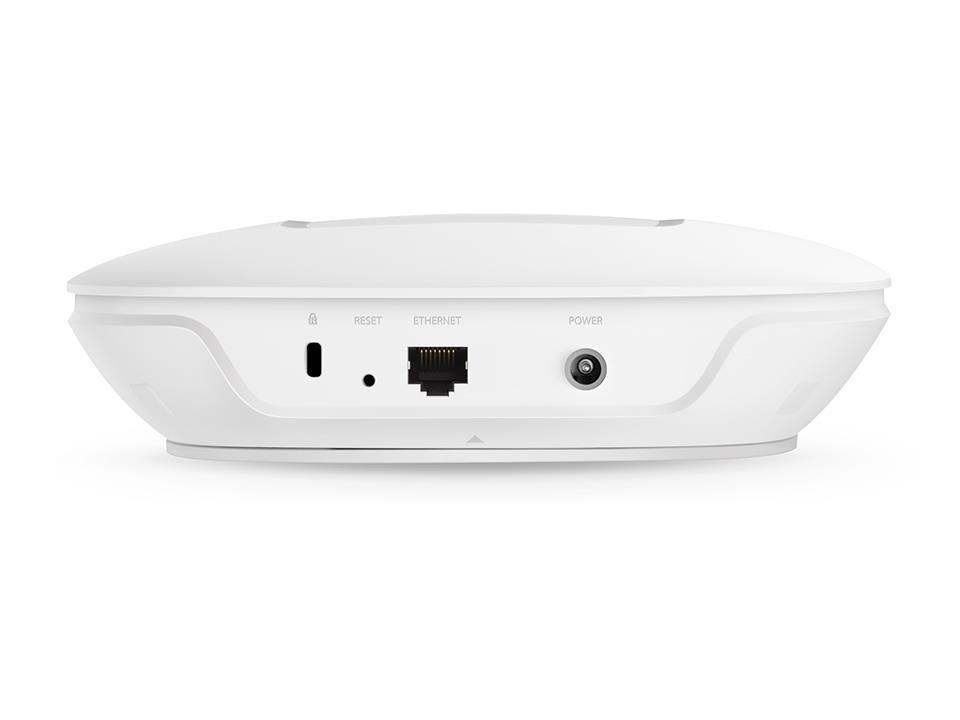

Interface Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3at PoE)
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 12.7 W
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9in. (180*180*47.5mm)
Antenna Type Internal Omni
2.4GHz: 3* 4dBi
5GHz: 3*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP Yes
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1750 Wireless Dual Band Gigabit Access Point EAP245
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
SKU EAP245
Model # EAP245
Barcode # 6935364096663
Brand TP-Link
Shipping Weight 0.9500kg
Shipping Width 0.240m
Shipping Height 0.040m
Shipping Length 0.280m
Shipping Cubic 0.002688000m3
Unit Of Measure ea
Type store
1 Year Manufacture Warranty
