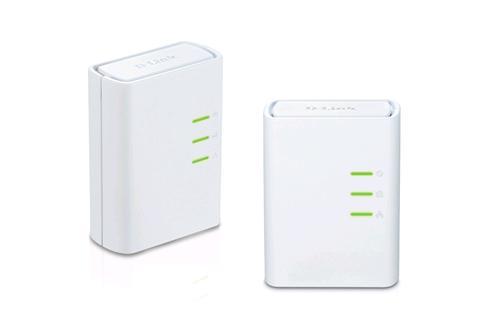

D-Link Powerline Mini Network Starter Kit
SKU: DHP-309AV
RRP $99.95
Sold Out
Notify me when back in stock
Dlink PowerLine AV Plus Mini Network Starter Kit DHP-309AV: The D-Link® PowerLine AV 500 Network Kit (DHP-309AV) extends your home network by transforming your existing electrical system into a powerful network.
Features
PowerLine AV500 for Bandwidth-Intensive Applications
The DHP-309AV features PowerLine AV500, enabling it to deliver data at speeds of up to 500 Mbps, higher than regular PowerLine AV products. This rapid transmission speed makes it ideal for bandwidth-intensive applications, which guarantees smooth HD video streaming, VoIP calls, and lag-free online gaming experiences. This device provides ample network bandwidth, enabling digital home consumers to tap into existing electrical wiring for high-quality multimedia streaming.
Convenient Setup and Secure Operation
The DHP-309AV plugs directly into a power outlet, and does not require any additional cables. Extend your home network by connecting multiple devices in the farthest corners of your home, or attach a switch or wireless access point to the adapter for additional connectivity. For convenient setup, an encryption key can be quickly configured with the push of a button. The adapter implements 128-bit AES data encryption to protect the network from unauthorized wire-tapping. With hassle-free plug and play installation, the DHP-309AV is an ideal solution to create a wall-to-wall home network.
Power-Saving Feature
The DHP-309AV incorporates a power-saving mode to comply with the European Energy Using Product (EuP) Directive. If no data transmission or reception occurs over a certain period of time, the adapter will automatically go into sleep mode to save power, reducing power usage by more than 70% and allowing you to save energy automatically, without sacrificing performance.
QoS
A QoS engine will analyze and separate the traffic of the DHP-309AV into multiple data streams. This allows for smooth streaming of Internet Protocol Television (IPTV), HD video, and lag-free online gaming because the most demanding data streams are automatically given priority.
Standards
Ethernet Interface
Maximum PHY Rate
Security
Input Power
LEDs
Power Saving
Power Consumption
Operating Temperature
Operating Humidity
EMC Certifications
Safety Certifications
Dimensions
Weight
- IEEE 802.3
- IEEE 802.3u
- IEEE 1901
- HomePlug AV
Ethernet Interface
- 10/100Base Ethernet Port with Auto MDI/MDIX
Maximum PHY Rate
- 500 Mbps1
Security
- 128-bit AES Data encryption
Input Power
- 100V ~ 240V, 50/60 Hz
LEDs
- Power
- PowerLine
- Ethernet
Power Saving
- Power saving mode supported
Power Consumption
- <5W
Operating Temperature
- 33º to 104ºF (0º to 40ºC)
Operating Humidity
- 10% to 90% non-condensing
EMC Certifications
- FCC
- CE
Safety Certifications
- UL
- CE LVD
Dimensions
- 2.7” x 2.1” x 1.0” (MM)
- (70 x 52 x 26 mm)
Weight
- 0.23lbs (104g)
SKU | DHP-309AV |
Model # | DHP-309AV |
Barcode # | 790069379192 |
Brand | D-Link |
Shipping Weight | 0.8000kg |
Shipping Width | 0.050m |
Shipping Height | 0.030m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000120000m3 |
Unit Of Measure | ea |
Type | store |
1 Year Manufacture Warranty
