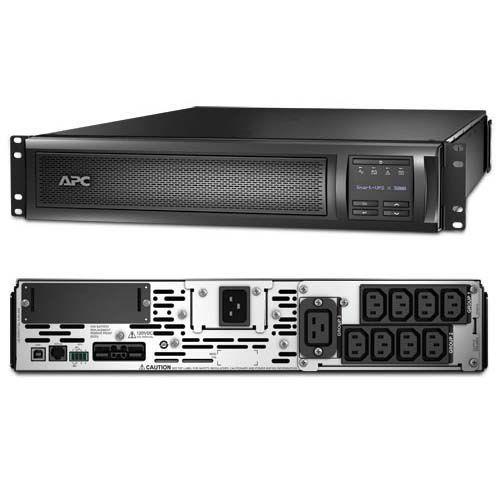

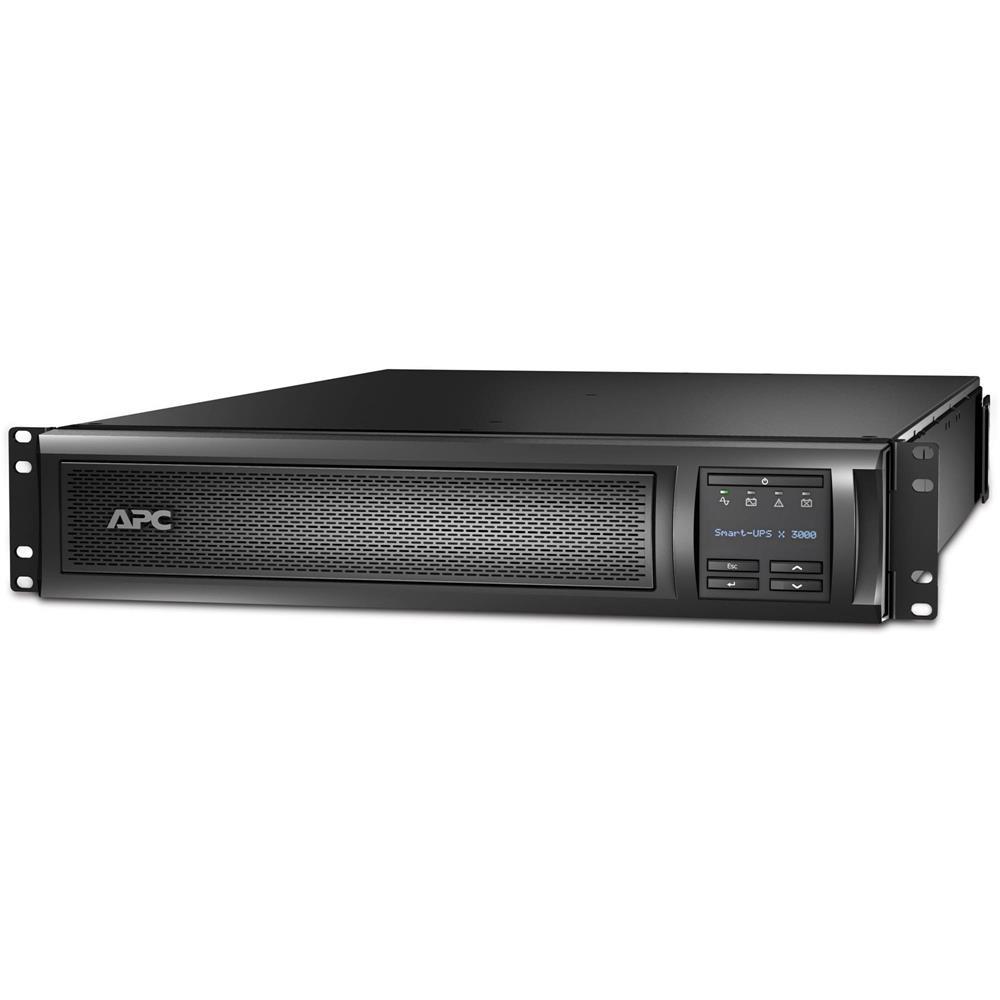

APC Smart UPS X 1980W 2200VA 230V Rack Tower UPS
SKU: SMX2200RMHV2U
Sold Out
Notify me when back in stock
People who viewed this, also viewed
Eaton 5P1150iR 1150VA 770W Line Intera
$1,070.00
APC 2200VA LCD 200-240V Smart UPS SMX2200RMHV2U: APC Smart-UPS,1980 Watts /2200 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U
Features
Availability
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Output
Output Power Capacity
1980 Watts / 2200 VA
Max Configurable Power
1980 Watts / 2200 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
208, 220, 240
Topology
Line Interactive
Waveform Type
Sine wave

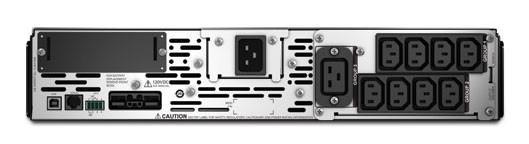

Output Connections
| (8) IEC 320 C13 |
|
| (1) IEC 320 C19 |
|
| (2) IEC Jumpers |
Input
Nominal Input Voltage
208V, 230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
| IEC-320 C20 | |
| Schuko CEE 7 / EU1-16P | |
| British BS1363A |
Cord Length
1.83 meters
Input voltage range for main operations
140 - 280V
Other Input Voltages
220, 240
Transfer Time
2-4 ms
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
RBC™ Quantity
1
Extended Run Options
Runtime Graph
| Curve | Part Number(s) |
| A | SMX2200RMHV2U |
| B |
SMX2200RMHV2U + (1)SMX120RMBP2U |
| C |
SMX2200RMHV2U + (2)SMX120RMBP2U |
| D |
SMX2200RMHV2U + (3)SMX120RMBP2U |
| E |
SMX2200RMHV2U + (4)SMX120RMBP2U |
| Load | Efficiency |
| 25% | 93.2% |
| 50% | 96.4% |
| 75% | 97.5% |
| 100% | 98.1% |
Communications & Management
Interface Port(s)
SmartSlot, USB
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
645 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
--
Physical
Maximum Height
85.00 mm
Maximum Width
432.00 mm
Maximum Depth
667.00 mm
Rack Height
2U
Net Weight
37.32 KG
Shipping Weight
45.36 KG
Shipping Height
243.00 mm
Shipping Width
596.00 mm
Shipping Depth
869.00 mm
Color
Black
Units per Pallet
8.00
Pallet Dimensions
39.37 inches
# of Layers per Pallet
4
# of Units per Layer per Pallet
2
Pallet Weight
388.69 KG
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
150.00 BTU/hr
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
| SKU | SMX2200RMHV2U |
| Model # | SMX2200RMHV2U |
| Barcode # | 731304272687 |
| Brand | APC |
| Shipping Weight | 7.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.250m |
| Shipping Length | 0.870m |
| Shipping Cubic | 0.130500000m3 |
| Unit Of Measure | ea |
| Type | store |
1 Year Manufacture Warranty
